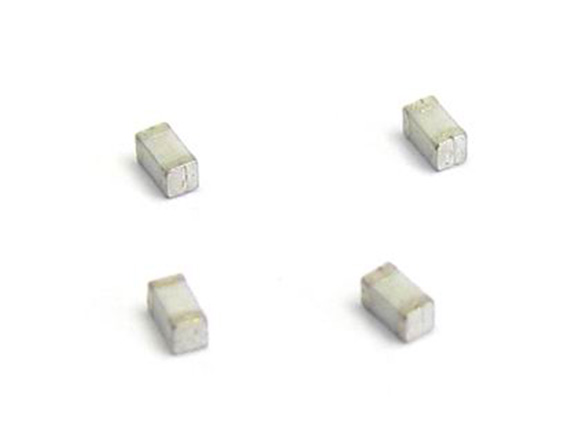

    PI Series High Power Ferrite Inductors

    Features

    • Monolithic Structure for high reliability.
    • Small size inductor.
    • No cross coupling due to magenetic shield.
    • Low DC resistance.
    • Offset current greatly increased.

    Applications

    • Widely used in choke circuit of the DC power line of intellige broadband,automtotive electronics, communications equipment, consumer electronics, offica automation and other electronic equip.
    Envelop get a quotation icon
    GET A QUOTATION
    • Dimensions
    • Bonding Pad
    • Downloads

    • SHAPE AND DIMENSIONS

      Part Number

      		 Dimensions (mm)
      L W T

      a

      PI1608

      		 1.6±0.15 0.8±0.15 0.8±0.15 0.3±0.2
      PI2012 2.0±0.2 1.2±0.2 0.8±0.2

      0.4±0.2

      PI3216

      		 3.2±0.2 1.6±0.2 0.8±0.2

      0.5±0.3

      PRODUCT IDENTIFICATION

      PI 2012 F 1R0 M T (f）
      ① ② ③ ④ ⑤ ⑥ ⑦
      • Series name.
      • Dimensions Length（L）×Width（W).1608: 1.6mm of length, 0.8mm of width.
      • Performance code.
      • Inductance: R10-0.1uH   1R0-1.0uH.
      • Tolerance: K: ±10%  M: ±20%  N: ±30%.
      • Package: B:by bulk   T: Tape and Reel.
      • Pb Free.

    • Part Number

      		 Dimensions (mm)
      A B

      C

      PI1608

      		 0.6 1.0 0.8
      PI2012 1.0 1.0

      1.0

      PI3216

      		 2.2 1.1 1.4
    • CB 1

      PI Series High Power Ferrite Inductors

      Detailed informations including inductance, tolerance, rated current and DCR.
