Wireless charging receiver coils are typically made of copper wire, which is wound into a spiral or circular structure to form an inductor. When a high-frequency alternating current passes through the coil of the wireless charging transmitter, a changing magnetic field is generated. This magnetic field travels through space and induces a voltage in the coil of the wireless charging receiver, thereby generating a current. This current is then converted into direct current to charge the device.
ZXcompo utilises high-power, high-heat dissipation, and low-heat generation wiring and winding processes, along with durable, break-resistant polymer magnetic shielding sheets, enabling the product to be used in complex environments. Currently, ZXcompo’s wireless charging coils can improve electromagnetic efficiency and meet the demands of fast charging designs. This product is widely used in digital product charging, automotive charging, medical equipment, health and fitness products, and other fields.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)
Zxcompo Customisation:
In addition to the standard characteristics of our series specification, ZXcompo Electronics also offers customised products with a low minimum order quantity (MOQ), tighter tolerances, and various inductance and frequency applications.

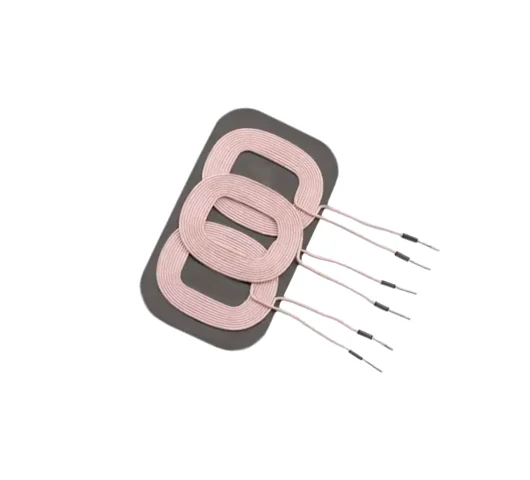

Wireless Charging Coil Product Description
| Brand name: |
ZXcompo |
| Name: |
3-Coil Wireless Charging Coils |
| Coil size: |
94.5mm*52.5mm*3.7mm or Custom |
| PCBA size: |
104mm*55mm*4.7mm(thickness) or Custom |
| Executive standard: |
QI wireless charging protocol |
| Inductance: |
Customized |
| Current Rating (Amps): |
Customized |
| Charging power: |
5W/7.5W/10W/15W(backward compatible) |
| Place of origin: |
Shenzhen.China |
| Export Markets: |
Global |
| Operating Temperature: |
-20°C ~ 105°C |
| Transmission distance: |
0-8mm(space) |
| Functions: |
Transmitter |
| Core Material: |
Ferrite |
| Packing: |
Carton |
Our Services:
1. 100% Testing Before Shipment
2. Free Samples Provided
3. New Design Solutions Provided to Clients
Customisation Services:
1. Inductance Value
2. Input Voltage, Output Voltage, and Output Current
3. Turns Ratio
4. Packaging Method
5. Mounting Dimensions
6. Safety Requirements
7. Product Application
Product prices are primarily determined by product parameters, manufacturing process complexity, raw materials, and order quantity.
Production technology
1. R&D and Design
Our R&D engineers can assist customers in determining parameter requirements and designing product structures and process flows based on these requirements.
2. Technical Support
We provide customised product solutions to meet customer product specifications or improve product performance, helping customers solve problems related to circuit safety and efficiency.
3. Manufacturer Guarantee
Our factory has obtained ISO9001:2015 quality management system certification and IATF16949:2016 automotive industry quality management system certification, possessing mature process flows and core technologies.
4. Mature System
We have established five standardised management systems, covering every aspect from product requirements analysis to product quality delivery. We always prioritise customer needs, ensuring an optimal user experience at every stage.
