Combined Flat Wire Power Inductor | 0535 Customize

Features

Low-profile design
Suitable for high-current applications
Magnetically shielded structure with low DC resistance
Effectively suppresses EMI interference through precise impedance design

Applications

DC/DC converters
Battery-powered devices
Notebooks and portable computers
Digital cameras, scanners, optical drives (CD-ROM), and DVD players

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

Thanks to the flat wire coil winding design, this series of inductors features a very compact structure. By thermally connecting the flat wire coil winding to the magnetic core, a larger ferrite surface can be coupled to the heat sink, enabling efficient heat dissipation. In addition to standard models, other inductance values can be customized according to customer requirements.

These RoHS-compliant and AEC-Q200 REV D certified inductors operate in a temperature range of -40°C to +150°C. Typical automotive applications include buck/boost inductors for DC-DC converters (e.g., for 48V vehicle power supplies) or common-mode inductors in on-board charger input filters. In industrial electronics, they can be used as energy storage inductors and output inductors in high-current power supplies and PoL power supplies.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)

Zxcompo Customisation:
In addition to the standard characteristics of our series specification, ZXcompo Electronics also offers customised products with a low minimum order quantity (MOQ), tighter tolerances, and various inductance and frequency applications.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

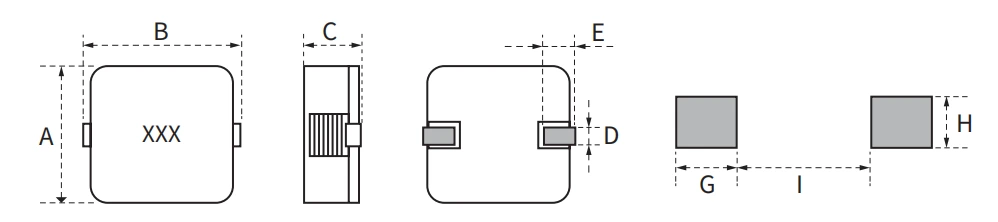

Appearance and Dimensions(mm)

Series	A	B	C	D	E	G	H	I
0535	12.8±0.5	13.0±1.0	3.5 Max	2.5±0.5	3.0±1.0	4.5	5.0	6.0

Electrical Characteristics

Part Number	Impedance (uH) +20%	Irms (A)	Isat (A)	DCR Max (mΩ)
0535-R25	0.25	24	60	0.83
0535-R68	0.68	22	40	1.74
0535-1R2	1.2	17	28	3.14
0535-1R8	1.8	14	22	6.16
0535-2R2	2.2	14	18	6.27
0535-3R3	3.3	12	14	8.91

Our Services:

1. 100% Testing Before Shipment
2. Free Samples Provided
3. New Design Solutions Provided to Clients

Customisation Services:

1. Inductance Value
2. Input Voltage, Output Voltage, and Output Current
3. Turns Ratio
4. Packaging Method
5. Mounting Dimensions
6. Safety Requirements
7. Product Application

Product prices primarily depend on product parameters, manufacturing process complexity, raw materials, and order quantity.

Production technology

1. R&D and Design
Our R&D engineers can assist customers in determining parameter requirements and designing product structures and process flows based on these requirements.

2. Technical Support
We provide customised product solutions to meet customer product specifications or improve product performance, helping customers solve problems related to circuit safety and efficiency.

3. Manufacturer Guarantee
Our factory has obtained ISO9001:2015 quality management system certification and IATF16949:2016 automotive industry quality management system certification, possessing mature process flows and core technologies.

4. Mature System
We have established five standardised management systems, covering every aspect from product requirements analysis to product quality delivery. We always prioritise customer needs, ensuring an optimal user experience at every stage.
