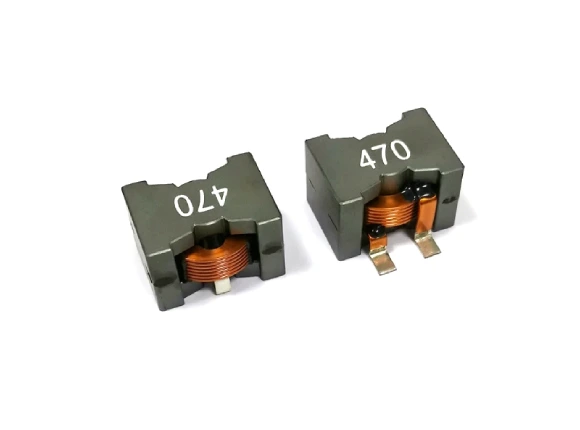

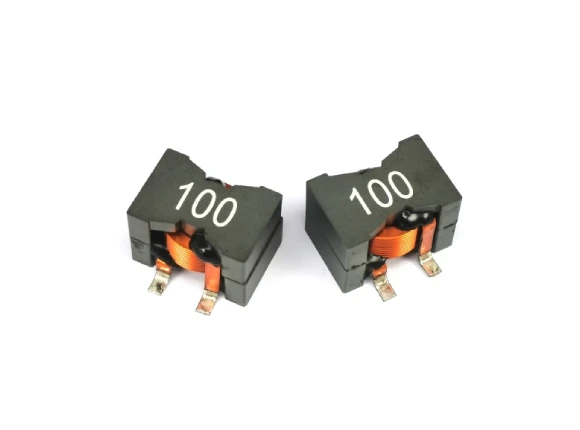

High Current Flat Wire SMD Inductor Custom

Features

Dummy Leads
High Thermal Stability
High Saturation Current
Excellent Temperature Stability
Ultra-Low DC Resistance (DCR)
40%–60% Increase in Effective Conductor Surface Area

Applications

Compact Industrial Controllers and Power Supplies.
5G Base Station Power Supplies and Telecom Equipment.
Automotive-Grade DC-DC Regulators (Efficiency-Optimized).

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

This flat-wire, high-current inductor features a three-pad design engineered to deliver exceptional stability and board adhesion; its flat-wire winding structure ensures extremely low DC resistance. This product series offers a wide range of size specifications and inductance value options, making it suitable for use in POL, VRM, VRD, and various other high-power applications. In addition to possessing extremely low DC resistance, its inductance value exhibits an exceptionally slow rate of decline—even when current levels exceed the saturation current threshold. All raw materials meet RoHS and REACH regulations, and the product has a Moisture Sensitivity Level (MSL) rating of 1. Its maximum operating temperature is +125°c. Based on these features, this high-current inductor is ideal for harsh environments or various high-current power supply applications.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)

Zxcompo Customisation:
In addition to the standard characteristics of our series specification, ZXcompo Electronics also offers customised products with a low minimum order quantity (MOQ), tighter tolerances, and various inductance and frequency applications.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

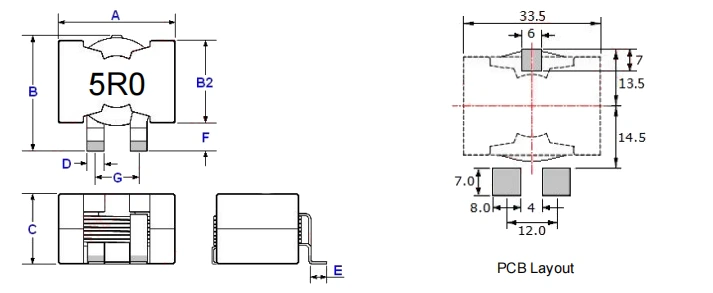

Appearance and Dimensions(mm)

Series	A	B	C	D	E	F	G
3218	33.5Max	30.8±1.0	18.8Max	6.0±0.3	4.0±1.0	6.7Ref	12.0±1.0
3220	33.5Max	30.8±1.0	20.5Max	6.0±0.3	4.0±1.0	6.7Ref	12.0±1.0
3222	33.5Max	30.8±1.0	22.5Max	6.0±0.3	4.0±1.0	6.7Ref	12.0±1.0
3225	33.5Max	30.8±1.0	22.5Max	6.0±0.3	4.0±1.0	6.7Ref	12.0±1.0

Electrical Characteristics

Part Number	Impedance (uH) +20%	Irms (A)	Isat (A)	DCR Max (mΩ)
3218	3.3~6.8	45	50~70	1.45
3220	1.5	80	120	0.6
3222	10~15	45	44~48	3.0
3225	10	47	50	2.55
