We offer power inductors in various sizes and shapes, including through-hole and surface-mount options, suitable for switching power supplies, DC-DC converters, and EMI filtering applications. Miniature SMD wirewound inductors are inductors that have a wire wound around a magnetic core, eliminating the need for magnetic shielding. The miniature SMD chip inductors are assembled using a fully automated process. Both types of inductors play similar roles in electronic circuits, particularly in space-constrained applications such as power supplies, DC-DC converters, and other electronic systems. Please feel free to contact us with any application requirements.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)
Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Notes:
1. Current that causes a 40°C temperature rise at 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
2. Maximum current that can be applied at 85°C.
3. Maximum current that can be applied at 125°C.

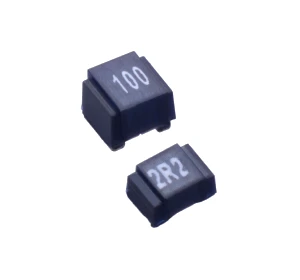

Parameters of FWI Series Inductor
The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, you are welcome to contact us.
Shape and Dimensions:
Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.
| Part Number |
Dimensions (mm) |
| A Max |
B Max |
C Max |
D Max |
E Max |
F Max |
| FWI0603 |
1.80 |
1.20 |
1.10 |
0.85 |
0.40 |
0.92 |
| FWI0805 |
2.30 |
1.70 |
1.45 |
1.38 |
0.60 |
1.03 |
| FWI1008 |
2.80 |
2.70 |
2.10 |
2.20 |
0.60 |
1.50 |
| FWI1210 |
3.50 |
2.90 |
2.25 |
2.50 |
0.60 |
2.20 |
| Part Number |
Dimensions (mm) |
| D1 |
D2 |
D3 |
| FWI0603 |
1.92 |
0.64 |
1.02 |
| FWI0805 |
2.80 |
0.76 |
1.78 |
| FWI1008 |
3.30 |
1.27 |
2.54 |
| FWI1210 |
3.90 |
1.80 |
2.54 |
Product Identification:
| FWI |
1008 |
-4R7 |
K |
S |
T |
| ① |
② |
③ |
④ |
⑤ |
⑥ |
- Series name.
- Dimensions L×W.
- Inductance: R47-0.47uH 4R7-4.7uH 470-47uH 471-470uH.
- Tolerance: J:±5% K: ±10% M: ±20%
- Terminal: S-Sn terminal
- Package: B: by bulk, T: Tape and Reel.
