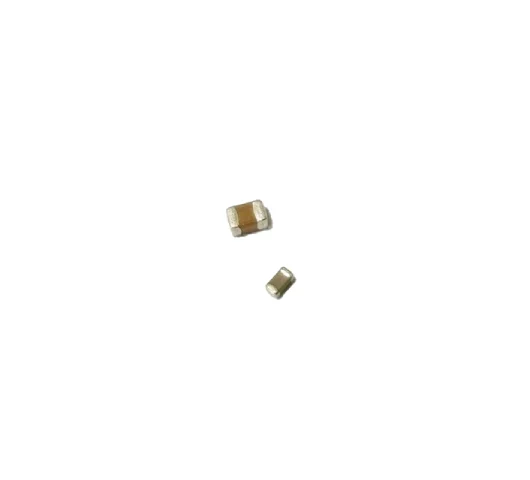

Zxcompo Multilayer Ceramic Capacitors are designed utilising innovative materials and thinning sheet technologies. This material technology enables process control at the particle level, increasing the number of layers needed to realise higher capacity while reducing size. The thickness of each layer in the multilayer ceramic capacitor family is only 0.6 μm at its thinnest point, and the number of layers reaches 1000 at its maximum. Zxcompo Multilayer Ceramic Capacitors are designed for high-performance digital devices, including smartphones, tablet PCs, TVs, power supplies, general digital circuits, DC/DC converters, and, for AEC-Q200-compliant MLCCs, automotive applications.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)
Zxcompo Customisation:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Whether your design targets power supplies, filtering circuits, or specialised applications, our custom semi-shielded SMD inductors can be meticulously optimised to excel within your precise field of application. If your PCB layout calls for a particular size to fit seamlessly, rest assured, we’ve got you covered. Our expertise allows us to customise the dimensions, ensuring a perfect integration with your design.
Shape and Dimensions:
Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.
|
Part Number
|
Dimensions (mm) |
Brand reference part No |
| L |
W |
T |
a |
Yageo |
MUTRATA
|
| CC0603 |
0.6±0.05 |
0.3±0.05 |
0.3±0.05 |
0.1±0.05 |
CC0201
|
|
GRM03
|
Product Identification:
| CC0603 |
CG |
101 |
K |
500 |
N |
T |
| ① |
② |
③ |
④ |
⑤ |
⑥ |
⑦ |
- Productor Code: Length（L）×Width（W）.
- Delectric Type: CG: COG or NPO; B: X7R; C: X5R; F: Y5V.
- Normal Capacitance(PF)：100：10； 101：100 ; 102：1000.
- Tolerance: B:0.1pf; C: 0.25pf; J ±5% ; K ±10%.
- Rate Voltage: 6R3: 6.3V; 500: 50V; 101: 100V.
- Termination Type: S: pure silver; C: pure copper; N: three-layer plating terminal.
- Package: B: by bulk, T: Tape and Reel.
