High Current Wire Wound SMD Inductors | NL453232

Features

Lead-free materials are used for the plating on the terminals.
The product uses metal terminals, which realize excellent connection reliability.
High resistance to heat, humidity, mechanical shocks, and pressure, accurate dimensions for automatic surface mounted.
The product has good heat durability that withstands lead-free compatible reflow soldering conditions.

Applications

Communication, equipment, and instruments.
Computer products. (Hard Disk; Floppy Disks. Etc.)
Modems, OA products, TV sets, VCRs.
RF circuits, like a tuner, transponder, etc.
RF amplifier circuits, like antenna amplifiers

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

The SMD wirewound ferrite chip inductor features a wirewound construction with the wire covered by a plastic molding case. This molding case of ferrite wire-wound inductor features highly accurate dimensions, reliable performance, and excellent heat durability that withstands the lead-free reflow soldering process.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offers customers reliable quality and a stable (short) delivery date (in urgent cases, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

Remark: Design according to the Customer’s request specification.

**📨Send us your project requirements!📨**

Shape and Dimensions:

Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.

NL Series Wire Wound Inductors

Part Number	Dimensions (mm)
Part Number	A Max	B Max	C Max	D Max
NL453232	4.5±0.5	3.2±0.5	3.2±0.5	1.4±0.3

NL Series Wire Wound Inductors-zxcompo

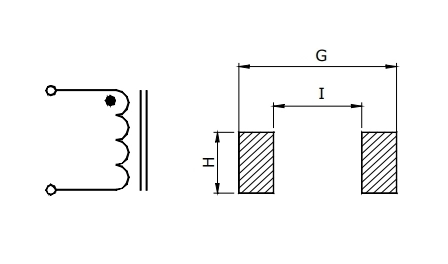

Part Number	Dimensions (mm)
Part Number	G	I	H
NL453232	5.90	1.50	4.20

Parameters of the NL Series Inductor

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, please get in touch with us.

Image	Title	Size(mm)	Inductance(uH)	Qmin	SRF(MHz)	Irms(mA)	DCR Max(Ω)	Action
	NL453232-1R0	4.5x 3.2x 3.2	1.0uh	50	100	450	0.5	Details label Inquiry label
	NL453232-4R7	4.5x 3.2x 3.2	4.7uh	50	35	315	1.0	Details label Inquiry label
	NL453232-180	4.5x 3.2x 3.2	18.0uh	50	15	190	2.8	Details label Inquiry label
	NL453232-560	4.5x 3.2x 3.2	56.0uh	50	9	135	5.5	Details label Inquiry label
	NL453232-820	4.5x 3.2x 3.2	82uh	50	8	120	7.0	Details label Inquiry label
	NL453232-221	4.5x 3.2x 3.2	220uh	40	4	100	10.0	Details label Inquiry label
	NL453232-471	4.5x 3.2x 3.2	470uh	40	3	62	26.0	Details label Inquiry label
	NL453232-681	4.5x 3.2x 3.2	680uh	30	3	50	30.0	Details label Inquiry label
	NL453232-102	4.5x 3.2x 3.2	1000uh	20	2.5	30	40.0	Details label Inquiry label
