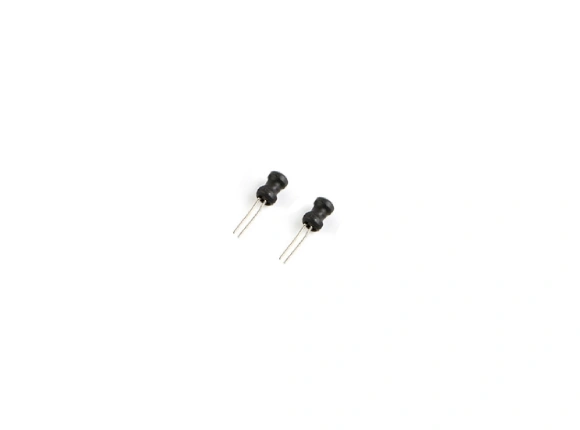

Radial Leaded Power Inductors | RI0406

Features

Inductance Range(L): 1.0µH – 470µH
DC Resistance (Max): 0.022 Ω – 5.35 Ω
Rated DC Current: 150 mA – 3200 mA
Core Material: Ferrite

Applications

Buzzers and Alarm systems.
TVs and audio equipment and switching power supplies are needed.
Notebook computers, DC-DC converters, and air-conditioning, etc.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

Zxcompo offers a variety of radial inductors, including those with open magnetic circuit designs and winding covers made from plastic or UL tubing. Our through-hole power inductors are characterized by their small size, high Q value, low cost, high self-resonance frequency, large induced current availability, minimal magnetic flux leakage, and large inductance values. With a small size and a high inductance value.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and in urgent cases, fast delivery plans are available. For specific product ranges, we can dispatch goods within 10 or 20 working days. This offers customers reliable quality and a stable (short) delivery date (urgent case, the delivery date could be 1 week only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. Our team of engineers has 20 years of experience in this field, we can modify the magnetic core powder to design and produce the most suitable products for customers to meet their applications, design and produce the most suitable products for customers to meet their applications.

Notes:
1. DCR at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
2. Isat: DC current at 25°C that causes the specified inductance drop from its value without current.
3. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

Shape and Dimensions:

Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.

Part Number	Dimensions (mm)
Part Number	ФA(MAX)	B(Max)	C(Max)	D	E
RI0406	6	9.5	According to customer demand	0.5±0.1	1.75±0.5

Parameters of Radial Inductors:

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, please contact us.

Image	Title	Size(mm)	Inductance(uH)	Rated Current Max(mA)	DCR Max(Ω)	Action
	RI0406-1R0	6.0x 9.5 Max	1.0	3200	0.022	Details label Inquiry label
	RI0406-1R2	6.0x 9.5 Max	1.2	3000	0.026	Details label Inquiry label
	RI0406-1R5	6.0x 9.5 Max	1.5	2650	0.032	Details label Inquiry label
	RI0406-1R8	6.0x 9.5 Max	1.8	2400	0.035	Details label Inquiry label
	RI0406-2R2	6.0x 9.5 Max	2.2	2200	0.040	Details label Inquiry label
	RI0406-2R7	6.0x 9.5 Max	2.7	2000	0.045	Details label Inquiry label
	RI0406-3R3	6.0x 9.5 Max	3.3	1850	0.050	Details label Inquiry label
	RI0406-3R9	6.0x 9.5 Max	3.9	1750	0.055	Details label Inquiry label
	RI0406-4R7	6.0x 9.5 Max	4.7	1550	0.065	Details label Inquiry label
	RI0406-5R6	6.0x 9.5 Max	5.6	1450	0.070	Details label Inquiry label
	RI0406-180	6.0x 9.5 Max	18	800	0.160	Details label Inquiry label
	RI0406-680	6.0x 9.5 Max	68	420	0.650	Details label Inquiry label
	RI0406-181	6.0x 9.5 Max	180	250	1.90	Details label Inquiry label
