ZRIP Series Radial Leaded Inductors

Features

Magnetically Shielded Construction
Heat-Resistant Molded Resin
Excellent Mechanical Strength
Excellent Solderability
High Reliability
Low DCR Large Current

Applications

DC/DC converters
Automotive applications
Network Communication Application
Ideal as a choke coil for noise filtering.
Suitable for use in audio processing circuits for low, high and bandpass filtering.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

Various kinds of radial inductors from Zxcompo, like magnetically shielded circuit design, winding covered by a magnetic ring core. The through-hole power inductor features a small size, high Q value, low cost, high self-resonance frequency, high availability of a large current, small magnetic flux leakage, and large inductance value.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

Parameters of Radial Inductors:

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, please contact us.

Image	Title	Inductance (µH)	Size(mm)	Rated Current Max(mA)	DCR(Ω)	Action
	RIP1010	10µH – 470µH	11.0 x 9.5 Max	104mA – 1000mA	0.018 – 0.250 Max	Details Inquiry
	RIP1012	10µH – 680µH	11.0 x 12.5 Max	390mA – 3300mA	0.027 – 1.080 Max	Details Inquiry
	RIP1014	10µH – 680µH	11.0 x 14.5 Max	560mA – 4500mA	0.029 – 1.330 Max	Details Inquiry

Shape and Dimensions:

Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.

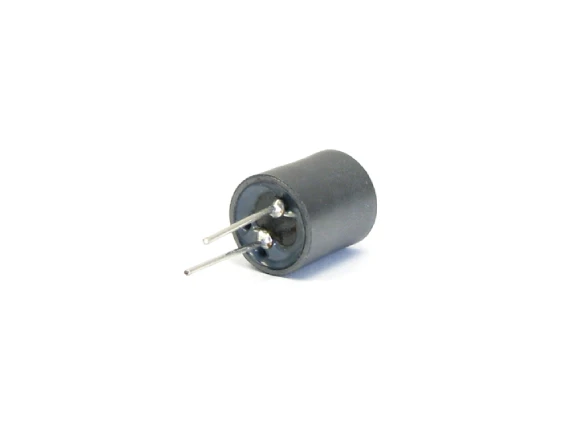

RIP Series Radial Leaded Inductor-zxcompo

Part Number	Dimensions (mm)
Part Number	ФA(MAX)	B(Max)	C(Max)	D	E
ZRIP1010	11.0	9.5	5.5	0.70±0.1	5.0±0.5
ZRIP1012	11.0	12.5	5.5	0.70±0.1	5.0±0.5
ZRIP1014	11.0	14.5	5.5	0.70±0.1	5.0±0.5
