ZSM Series SMD Unshielded Power Inductors

A fully automated winding, soldering, testing, and packing machine produces this miniature wire-wound SMD power inductor. 100% check is performed before each shipment, which includes testing for characteristic inductance value, DC resistance, Isat current, and layer isolation.
Inductors, also called coils or reactors, are electrical components that resist changes in electric current passing through them. It consists of a conductor, such as a wire, wound into a coil. When the electric current changes, the magnetic field in the coil induces a voltage, opposing a change in current.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Whether your design targets power supplies, filtering circuits, or specialized applications, our custom semi-shielded SMD inductors can be meticulously optimized to excel in your specific application. If your PCB layout requires a specific size to fit seamlessly, rest assured, we’ve got you covered. Our expertise enables us to tailor the dimensions, ensuring seamless integration with your design.

Remark: The design is as per the customer’s request specification.

📨*Send us your project requirements!*📨

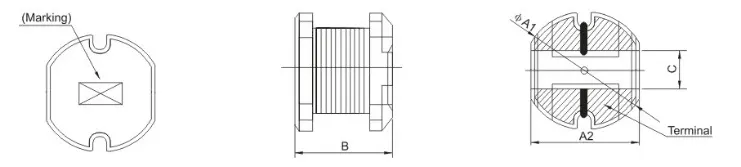

Shape and Dimensions:

Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.

Parameters of SM Series Inductor

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, please contact us.

Image	Part Number	Inductance (µH)	Size(mm)	DCR Max (Ω)	Rated Current Max (mA)	Action
	ZSM3511	1.0µH – 68µH	3.5 x 3.0 x 1.1	0.08Ω – 3.5Ω	220mA – 1400mA	Details Inquiry
	ZSM3516	1.0µH – 68µH	3.5 x 3.0 x 1.6	0.055Ω – 2.4Ω	200mA – 1800mA	Details Inquiry
	ZSM3521	1.0µH – 470µH	3.5 x 3.0 x 2.1	0.04Ω – 21.5Ω	120mA – 2250mA	Details Inquiry
	ZSM4520	1.0µH – 82µH	4.5 x 4.0 x 2.0	0.035Ω – 1.5Ω	350mA – 2700mA	Details Inquiry
	ZSM4532	1.0µH – 1000µH	4.5 x 4.0 x 3.2	0.033Ω – 12.5Ω	50mA – 3800mA	Details Inquiry
	ZSM5830	1.0µH – 220µH	5.8 x 5.2 x 3.0	0.018Ω – 1.57Ω	350mA – 5000mA	Details Inquiry
	ZSM7835	1.0µH – 820µH	7.8 x 7.0 x 3.5	0.015Ω – 4.3Ω	200mA – 6500mA	Details Inquiry
	ZSM7850	1.0µH – 820µH	7.8 x 7.0 x 5.0	0.03Ω – 3.10Ω	230mA – 6800mA	Details Inquiry
	ZSM1040	1.0µH – 1000µH	10 x 9.0 x 4.0	0.015Ω – 3.55Ω	220mA – 7200mA	Details Inquiry
	ZSM1054	1.0µH – 1000µH	10 x 9.0 x 5.4	0.01Ω – 3.43Ω	240mA – 7600mA	Details Inquiry

Product Identification:

• Series name.
• Dimensions D×T.
• Inductance: R47-0.47uH  4R7-4.7uH  470-47uH.
• Tolerance:  K: ±10%  M: ±20%  N: ±30% .
• Pb Free.
