Magnetic Resin SMD Power Inductor | NR252012

A fully automated winding, soldering, testing, and packing machine produces this miniature wire-wound SMD power inductor. 100% check is performed before each shipment, which includes testing for characteristic inductance value, DC resistance, Isat current, and layer isolation.

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Whether your design targets power supplies, filtering circuits, or specialized applications, our custom semi-shielded SMD inductors can be meticulously optimized to excel within your precise field of application. If your PCB layout calls for a particular size to fit seamlessly, rest assured, we’ve got you covered. Our expertise allows us to customize the dimensions, ensuring a perfect integration with your design.

Remark: The design is as per the customer’s request specification.

📨*Send us your project requirements!*📨

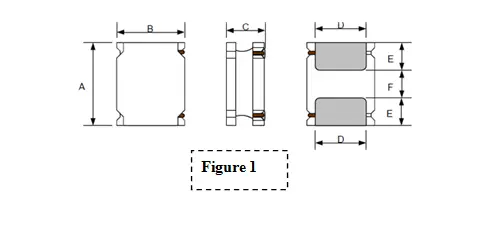

Shape and Dimensions:

Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.

Parameters of the NR Series Inductor

The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, please contact us.

Image	Title	Size(mm)	Inductance(uH)	Rated Current Max (mA)	DCR Max(Ω)	Action
	NR252012-R47	2.5 x 2.0 x 1.2	0.47	2340	0.061	Details label Inquiry label
	NR252012-1R0	2.5 x 2.0 x 1.2	1.0	2100	0.090	Details label Inquiry label
	NR252012-1R2	2.5 x 2.0 x 1.2	1.2	1590	0.129	Details label Inquiry label
	NR252012-2R2	2.5 x 2.0 x 1.2	2.2	1250	0.216	Details label Inquiry label
	NR252012-3R3	2.5 x 2.0 x 1.2	3.3	1130	0.264	Details label Inquiry label
	NR252012-4R7	2.5 x 2.0 x 1.2	4.7	920	0.377	Details label Inquiry label
	NR252012-6R8	2.5 x 2.0 x 1.2	6.8	750	0.581	Details label Inquiry label
	NR252012-100	2.5 x 2.0 x 1.2	10	680	0.690	Details label Inquiry label
	NR252012-220	2.5 x 2.0 x 1.2	22	410	1.976	Details label Inquiry label

Product Identification:

• Series name.
• Dimensions D×T.
• Inductance: R33-0.33uH 3R3-3.3uH 100-10uH.
• Tolerance: J:±5% K: ±10% M: ±20%.
