Surface-mount shielded inductors are designed to reduce electromagnetic interference (EMI) by enclosing the coil in a shielded housing. The housing is typically made from a ring core, which is used to cover the areas around the coil and create a closed magnetic circuit. This helps to block external and internal magnetism from affecting the performance of the inductor, which can improve its reliability and accuracy in applications where EMI is a concern. The use of shielded housing can also help to protect the inductor from external sources of interference, such as other electronic devices or electrical noise.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)
Zxcompo Customization:
Our SMD shielded power inductor SDS series features a wide range of industry-standard footprints, accommodating various applications from the smallest 3.0mm to 12.0mm. The inductance ranges from 1.0uH (1R0) to 1500uH (152) and the customized inductance value (customized characteristic of SMD shielded power inductor) is available.
All of the products will be checked by the fully automated machine to reach our goal: zero defects. Furthermore, except for the standard part, a customized item is suitable for us.
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Remark: The design is as per the customer’s request specification.

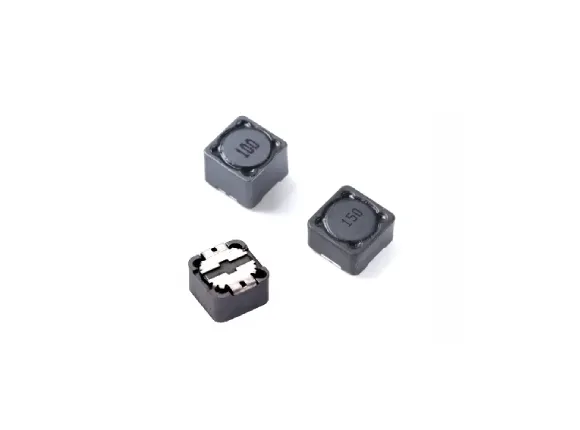

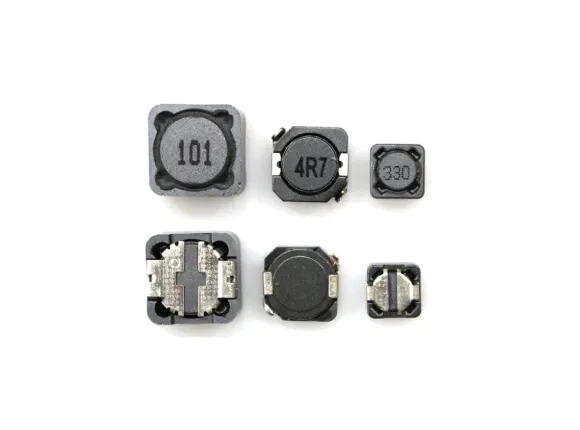

Parameters of SMRH1 Series Inductor
The following are the parameters of this series of inductors produced by Zxcompo. If you require these products, please feel free to contact us.

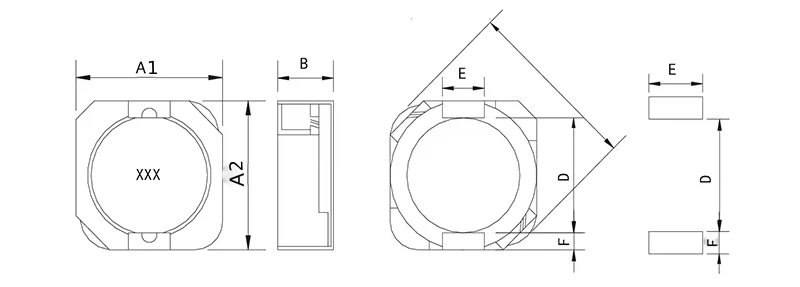

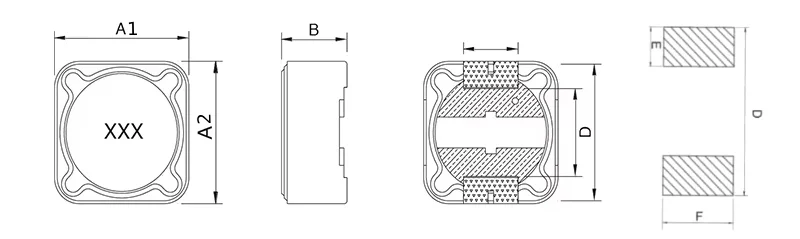

Shape and Dimensions:
Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.
| Part Number |
Dimensions (mm) |
| A1 |
A2 |
B |
D |
E |
F |
| ZSMRH73 |
7.3±0.3 |
7.3±0.3 |
3.8MAX |
8.0 |
1.8 |
2.6 |
| ZSMRH74 |
7.3±0.3 |
7.3±0.3 |
4.5MAX |
8.0 |
1.8 |
2.6 |
| ZSMRH105R |
10.0±0.3 |
10.6MAX |
5.0Max |
11.0 |
1.8 |
3.6 |
| ZSMRH127 |
12.0±0.3 |
12.0±0.3 |
8.0Max |
13.0 |
2.4 |
5.6 |
| ZSMRH129 |
12.0±0.3 |
12.0±0.3 |
10.5Max |
13.0 |
2.4 |
5.6 |
Product Identification:
- Series name.
- Dimensions D×T.
- Inductance: R47-0.47uH 4R7-4.7uH 100-10uH.
- Tolerance: K: ±10% M: ±20% N: ±30%.
