ZXcompo offers a variety of electromagnetic interference (EMI) filters, such as clamp filters, ferrite rings, ferrite beads, and split/clamp-in cores. An EMI filter is a passive electronic device used to suppress conducted interference on signal or power lines. Electromagnetic interference (EMI) refers to unacceptable electromagnetic radiation, whether naturally occurring or man-made, that can cause performance degradation or malfunction of electronic equipment. EMI filters can be used to suppress interference generated by equipment. ZXcompo is a manufacturer of common-mode inductor filters. Please contact us at sales@ZXcompo.com. These filters offer a wide selection, high impedance, and high self-resonant frequencies across the applicable frequency range.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)
Zxcompo Customisation:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Whether your design targets power supplies, filtering circuits, or specialised applications, our custom semi-shielded SMD inductors can be meticulously optimised to excel within your precise field of application. If your PCB layout calls for a particular size to fit seamlessly, rest assured, we’ve got you covered. Our expertise allows us to customise the dimensions, ensuring a perfect integration with your design.

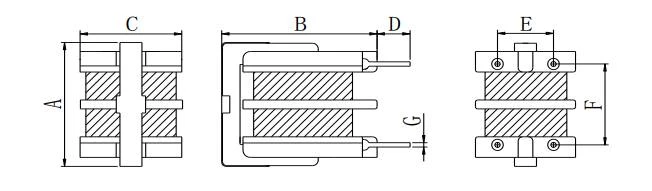

Shape and Dimensions:
Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.
|
Part Number
|
A |
B |
C |
D |
E |
F |
G
|
|
UU9.8
|
17Max |
17Max |
12Max |
4±0.5 |
7±0.5 |
8±0.5 |
0.6±0.1 |
| UU10.5 |
19.5Max |
22.5Max |
17.5Max |
4±0.5 |
10±0.5 |
13±0.5 |
0.7±0.1
|
|
UU16
|
23.5Max |
29.5Max |
20Max |
4±0.5 |
10±0.5 |
13±0.5 |
0.7±0.1
|
Parameters of Transformer
The following are the parameters of this series of inductors produced by Zxcompo. If you need these products, please contact us.
Product Identification:
- Series name.
- Size code.
- Inductance: 102-1mH.
- Tolerance:J:±5%,K: ±10%, M:±20%.
