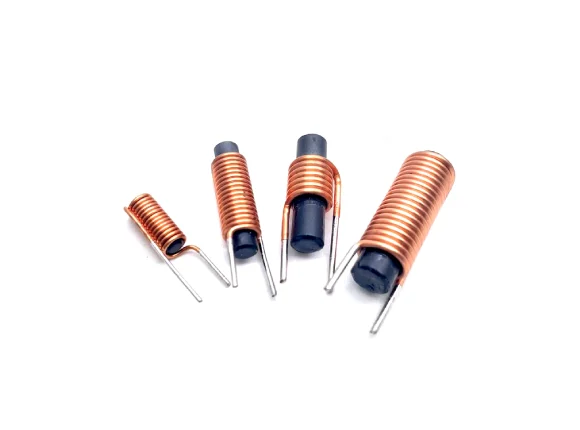

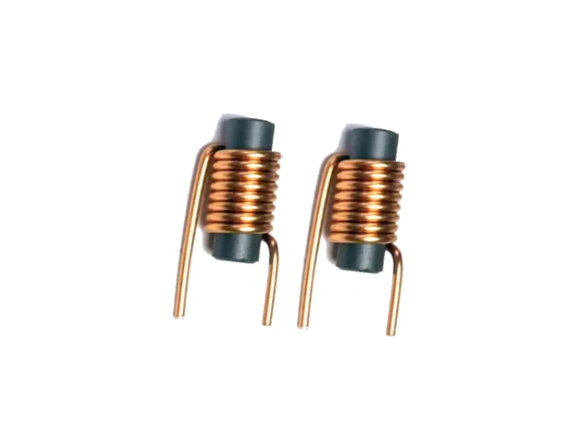

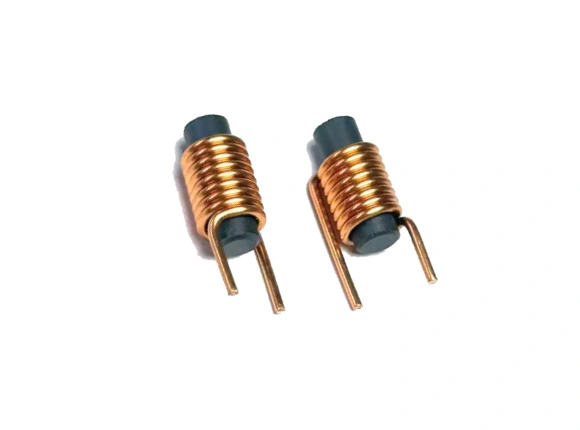

This magnetic rod inductor features a copper wire coil structure, making it an ideal choice for R-type magnetic rod filter inductors. The high-permeability magnetic core effectively suppresses high-frequency noise, achieving excellent filtering performance in the 50Hz-200kHz frequency range, reducing ripple and interference signals in the circuit, and improving the stability of the power supply or signal transmission.
Its compact size facilitates integration into small electronic devices, suitable for applications such as power adapters, automotive electronic systems, and wireless communication modules. Copper wire material has low DC resistance, which can reduce inductance loss and improve circuit energy efficiency. Combining precision winding technology and moisture-proof insulation treatment, it ensures stable operation in complex electromagnetic environments and under different temperature and humidity conditions, providing reliable filtering and energy storage functions for electronic circuits.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)
Zxcompo Customisation:
In addition to the standard characteristics of our series specification, ZXcompo Electronics also offers customised products with a low minimum order quantity (MOQ), tighter tolerances, and various inductance and frequency applications.
Product Description
| Brand name: |
ZXcompo |
| Dimensions: |
0.8mm (D) × 4mm (W) × 15mm (L) or Custom
|
| Wire Material: |
Copper (Enameled/Insulated) |
| Core Material: |
Ferrite / Magnetic Bar |
| Place of origin: |
Shenzhen.China |
| Inductance (L): |
Customizable (e.g., 10µH–10mH typical) |
| Current Rating: |
Depends on wire gauge (e.g., 1A–5A typical) |
| DC Resistance (DCR): |
Low (varies with wire thickness) |
| Frequency Range: |
Wide (e.g., 1kHz–10MHz) |
| Temperature Range: |
-40°C to +125°C (typical) |
| Mounting Type: |
Through-hole (PTH) or SMD options |
Our Services:
1. 100% Testing Before Shipment
2. Free Samples Provided
3. New Design Solutions Provided to Clients
Customisation Services:
1. Inductance Value
2. Input Voltage, Output Voltage, and Output Current
3. Turns Ratio
4. Packaging Method
5. Mounting Dimensions
6. Safety Requirements
7. Product Application
Product prices primarily depend on product parameters, manufacturing process complexity, raw materials, and order quantity.
Production technology
1. R&D and Design
Our R&D engineers can assist customers in determining parameter requirements and designing product structures and process flows based on these requirements.
2. Technical Support
We provide customised product solutions to meet customer product specifications or improve product performance, helping customers solve problems related to circuit safety and efficiency.
3. Manufacturer Guarantee
Our factory has obtained ISO9001:2015 quality management system certification and IATF16949:2016 automotive industry quality management system certification, possessing mature process flows and core technologies.
4. Mature System
We have established five standardised management systems, covering every aspect from product requirements analysis to product quality delivery. We always prioritise customer needs, ensuring an optimal user experience at every stage.
