Our products are widely used in numerous automotive sectors, covering traditional internal combustion engine vehicles, hybrid vehicles, and electric vehicles. Automotive applications require equipment to maintain reliable and stable performance throughout their entire lifespan.
Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)
Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Whether your design targets power supplies, filtering circuits, or specialized applications, our custom capacitors can be meticulously optimized to excel within your precise field of application. If your PCB layout requires a specific size to fit seamlessly, rest assured, we’ve got you covered. Our expertise enables us to tailor the dimensions, ensuring seamless integration with your design.

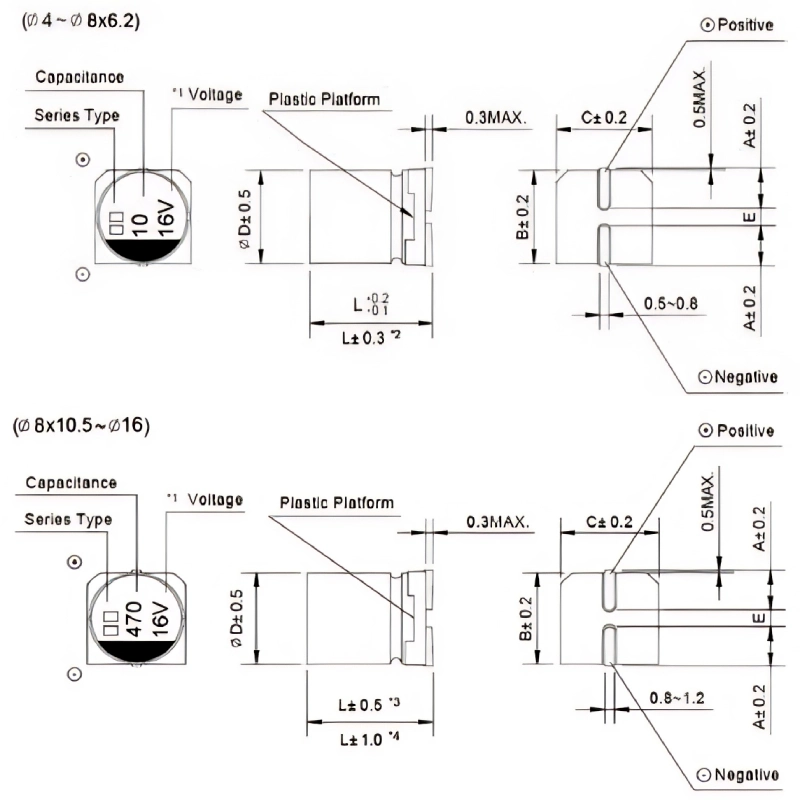

Shape and Dimensions:
Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.
| Part Number |
Dimensions (mm) |
| A |
B |
C |
D |
E |
L |
| 4×5.4 |
1.8 |
4.3 |
4.3 |
4.3 |
1 |
5.4 |
| 5×5.4 |
2.1 |
5.3 |
5.3 |
5.3 |
1.3 |
5.4 |
| 6.3×5.4 |
2.4 |
6.6 |
6.6 |
6.6 |
2.2 |
5.4 |
| 6.3×7.7 |
2.4 |
6.6 |
6.6 |
6.6 |
2.2 |
7.7 |
| 8×6.2 |
3.3 |
8.3 |
8.3 |
8.3 |
2.2 |
6.2 |
| 8×10.2 |
2.9 |
8.3 |
8.3 |
8.3 |
3 1 |
10.2 |
| 10×10.2 |
3 2 |
10.3 |
10.3 |
10.3 |
4.4 |
10.2 |
| 10×13.5 |
3.2 |
10.3 |
10.3 |
10.3 |
4.4 |
13.5 |
| 12.5×13.5 |
4.7 |
13 |
13 |
13 |
4.4 |
13.5 |
| 12.5×16 |
4.7 |
13 |
13 |
13 |
4.4 |
16 |
| 16×16.5 |
5.5 |
17 |
17 |
17 |
6.7 |
16.5 |
1. Voltage mark for 6.3V is [6V]
2. Applicable to ∅6.3×7.7
3. Applicable to ∅8×10.5~∅10
4. Applicable to ∅12.5~∅16
NOTE: All designs and specifications are for reference only and are subject to change without prior notice. If any doubts about the safety of your application, please contact us immediately for technical assistance before purchase.
