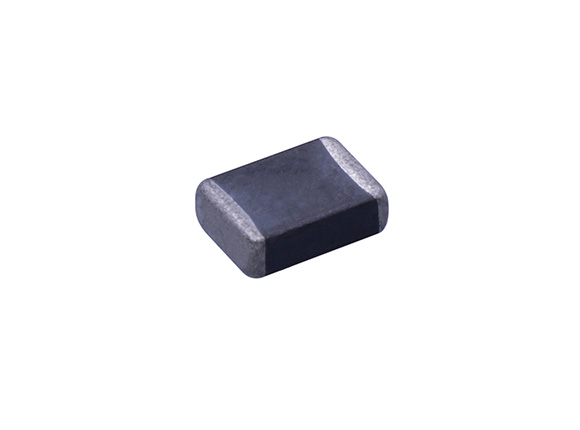

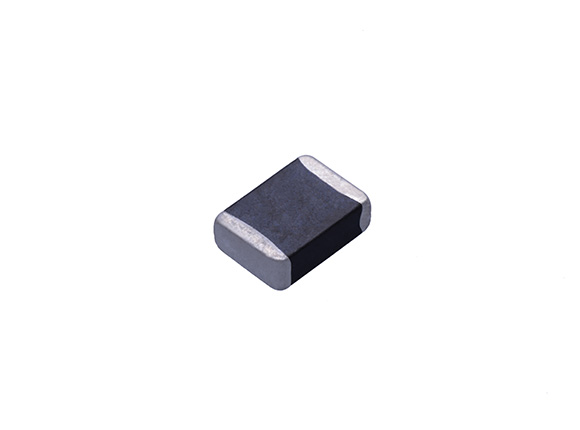

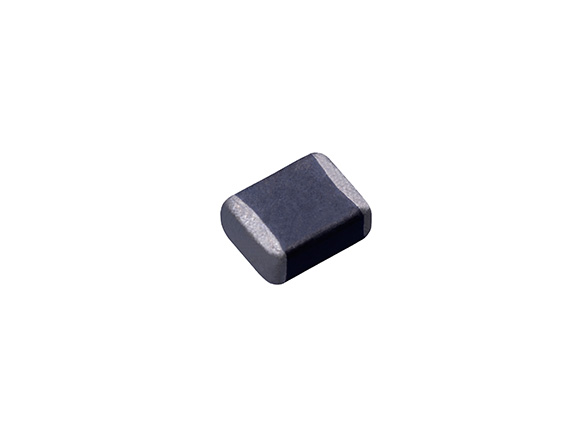

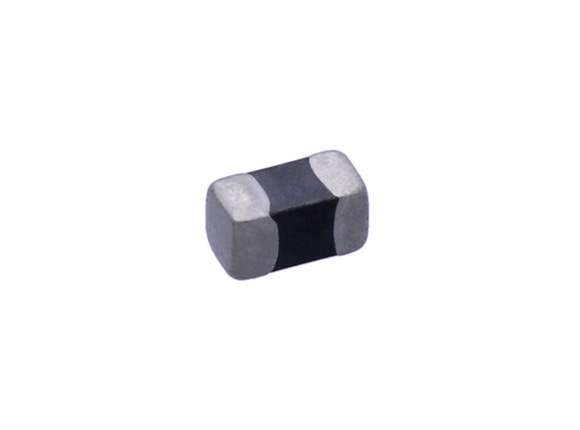

CI Series Multilayer Chip Ferrite Inductors

Features

Monolithic Structure for high reliability.
Small size inductor.
No cross coupling due to magenetic shield.
Perfact shape for mounting with no directionality.
Excellent solderability and high heat resistance for reflow soldering or wave soldering.
Operating temperature range: -55℃～125℃.

Applications

Widely used in communications,video and audio and equipment, Computer,Remote contol,ETC.

Envelop get a quotation icon

GET A QUOTATION

Dimensions
Bonding Pad
Downloads

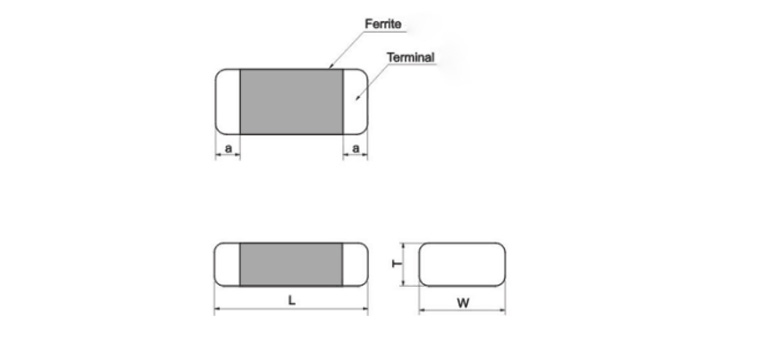

SHAPE AND DIMENSIONS

Part Number	Dimensions (mm)				Brand reference part No
Part Number	L	W	T	a	TDK	MUTRATA
CI1005	1.0±0.15	0.5±0.15	0.5±0.15	0.25±0.1	MLG/MLK1005	LQP15FN/PN
CI1608	1.6±0.15	0.8±0.15	0.8±0.15	0.3±0.2	MLG/MLK1608	LQM18FN/PN
CI2012	2.0±0.2	1.2±0.2	0.8±0.2	0.4±0.2	MLG/MLK2012	LQM21FN/PN
CI3216	3.2±0.2	1.6±0.2	0.8±0.2	0.5±0.3	MLG/MLK3216	LQM31FN/PN

PRODUCT IDENTIFICATION

CI	2012	C	5R6	K	T	(f）
①	②	③	④	⑤	⑥	⑦

Series name.
Dimensions L×W 1608: 1.6mm of length, 0.8mm of width.
Performance code 2B: Moisture proof, highest operating temperature is125℃.
Inductance: R56-0.56Uh 5R6-5.6uH.
Tolerance: J:±5% K: ±10% M: ±20%.
Package: B:by bulk T: Tape and Reel.
Pb Free.

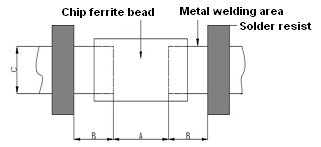

Part Number
Dimensions (mm)

A B
C

CI1005
0.35 0.6 0.6

CI1608
0.6 1.0 0.8

CI2012 1.0 1.0
1.0

CI3216 2.2 1.1
1.4
CI Series Multilayer Chip Ferrite Inductors

Detailed informations including inductance, tolerance, rated current and DCR.
