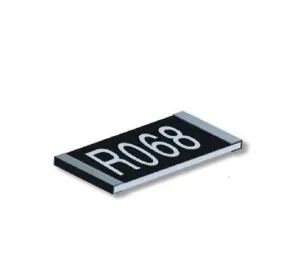

RMK Series General Chip Fixed Resistor

Features

Small size and lightweight.
According to the ROHS standards.
Supplied on tape on the reel.
Stable electrical capability has high reliability

Applications

Meter.
Mobile Phone and Telecom.
Navigator(GPS).PDA and set box.
Remote control and Security system.

Minimum order quantity: 1 piece
Supply capacity: 1,000,000 pieces per month

GET A QUOTATION

Dimensions
Downloads

Zxcompo Leadtime:
Zxcompo’s standard delivery time is 1~2 weeks, and fast delivery plans within 3 days are available in urgent cases. This offers customers reliable quality and stable (short) delivery dates (in urgent cases, the delivery date could be 1 day only)

Zxcompo Customization:
In addition to the standard features of our family of specifications, Zxcompo offers low minimum order quantities (MOQs), tighter tolerances, and custom products for different inductance and frequency applications. With our team of engineers’ deep background in the ferrite powder field, we can modify the core powder to design and produce the most suitable product to meet our customers’ applications.
Whether your design targets power supplies, filtering circuits, or specialized applications, our custom semi-shielded SMD inductors can be meticulously optimized to excel within your precise field of application. If your PCB layout calls for a particular size to fit seamlessly, rest assured, we’ve got you covered. Our expertise allows us to customize the dimensions, ensuring a perfect integration with your design.

Remark: The design is as per the customer’s request specification.

**📨Send us your project requirements!📨**

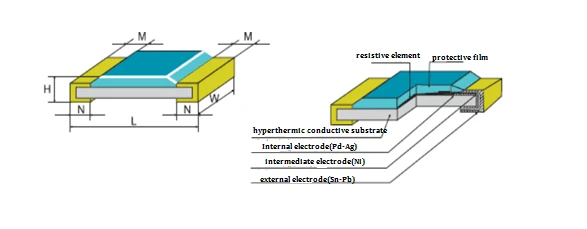

Shape and Dimensions:

Our team of engineers has over 20 years of experience in this field. We design and produce the most suitable products to meet our customers’ application needs. Contact email: sales@ZXcompo.com.

RMK Size Resistor-Zhenhua

Part Number	Dimensions (mm)					Brand reference part No
Part Number	L	W	H	M	N	FENG	Yageo
RMK1005	1.00±0.20	0.50±0.10	0.35±0.10	0.20±0.10	0.20±0.10	RS/RC02	RC0402
RMK1608	1.60±0.15	0.80±0.10	0.50±0.15	0.30±0.15	0.30±0.15	RS/RC03	RC0603
RMK2012	2.00±0.15	1.25±0.15	0.50±0.15	0.40±0.25	0.40±0.25	RS/RC05	RC0805
RMK3216	3.20±0.15	1.60±0.15	0.55±0.15	0.50±0.25	0.50±0.25	RS/RC06	RC1206
RMK3225	3.20±0.15	2.50±0.15	0.55±0.15	0.50±0.25	0.50±0.25	RS/RC1210	RC1210
RMK5025	5.20±0.15	2.50±0.15	0.55±0.15	0.60±0.25	0.60±0.25	RS/RC2010	RC2010
RMK6332	6.30±0.15	3.20±0.15	0.55±0.15	0.60±0.25	0.60±0.25	RS/RC2512	RC2512

Product Identification:

RMK1608	K	C	101	F	T
①	②	③	④	⑤	⑥

Productor Code: Thick film chip fixed resistor, Length（L）×Width（W）.
Resistance Temperature Coefficient Code : K: ±100ppm/℃, W: ±200ppm/℃, L: ±250ppm/℃, U:±400ppm/℃.
Power Rating Series Code: C: Normal power series, S: Upgraded power series.
Normal Resistance(Ω)：100：10； 101：100 ; 103：10000 .
Tolerance: F: ±0.1%; G: ±0.2%; J ±5% ; K ±10%.
Package: B: by bulk T: Tape and Reel.
